BUSINESS
Clean space access equipment
EFU Exhaust Fan Unit
▶ ‘Exhaust Fan Unit Powerfully Discharging Stagnant and Polluted Air’
- Equipment
- EFU with high performance, slim design, and proven performance
- Function
- Speedy discharge of stagnant air
- Maintaining even levels of air velocity at discharge
- Powerful and highly efficient fan and motor
- Ease of Velocity control (PWM Control)

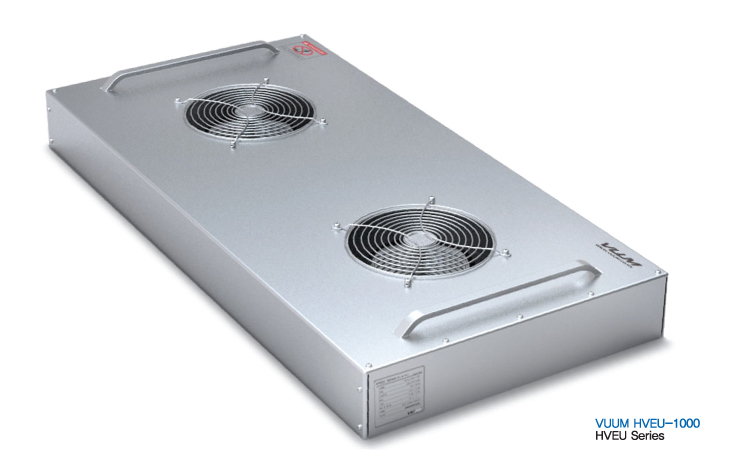

- VUUM Exhaust Fan Unit
- ‘Exhaust Fan Unit Powerfully Discharging Stagnant and Polluted Air’
- This exhuast fan unit forcefully and powerfully discharges stagnant and polluted air from the inside of the Clean Room.
- Speedy discharge of stagnant air
- Maintaining even levels of air velocity at discharge
- Powerful and highly efficient fan and motor
- Ease of Velocity control (PWM Control)
- Product Specification
AC Motor Types
| MODEL | HVEU-1000 |
|---|---|
| Size(Including Filter) | 1188×578×110 |
| Filter Size (mm) | 1180×570×10H |
| Filter Specification | 70-85% dust-collection efficiency of the pre-filter weight |
| Air Velocity | 0.5~12㎧ |
| Power | 1PH AC 220V 60Hz (CE-certified) |
| 360W | |
| Filter Specification | ULPA fILTER, 0.12㎛ 99.99995%(DOP), 9mmAq |
| Weight | 17kg |
| Noise | 75dB(A) |
- Supply history
| Company | By country | Participation Type | Delivery time | Scale |
|---|---|---|---|---|
| China | Jenamanjang | EFU supply to Samsung SDI Xian | Deodorization EFU(20EA), FILTER(60EA) | 21.05~21.06 |
| Korea | Sinsung ENG | EFU supply to Samsung SDI Cheonan | Deodorization EFU(47EA), FILTER(141EA) | 21.04~21.06 |
| Korea | Oneplus | EFU supply to Samsung SDI Ulsan | Deodorization EFU(56EA), FFU(36EA), FILTER(204EA) | 21.04~22.07 |

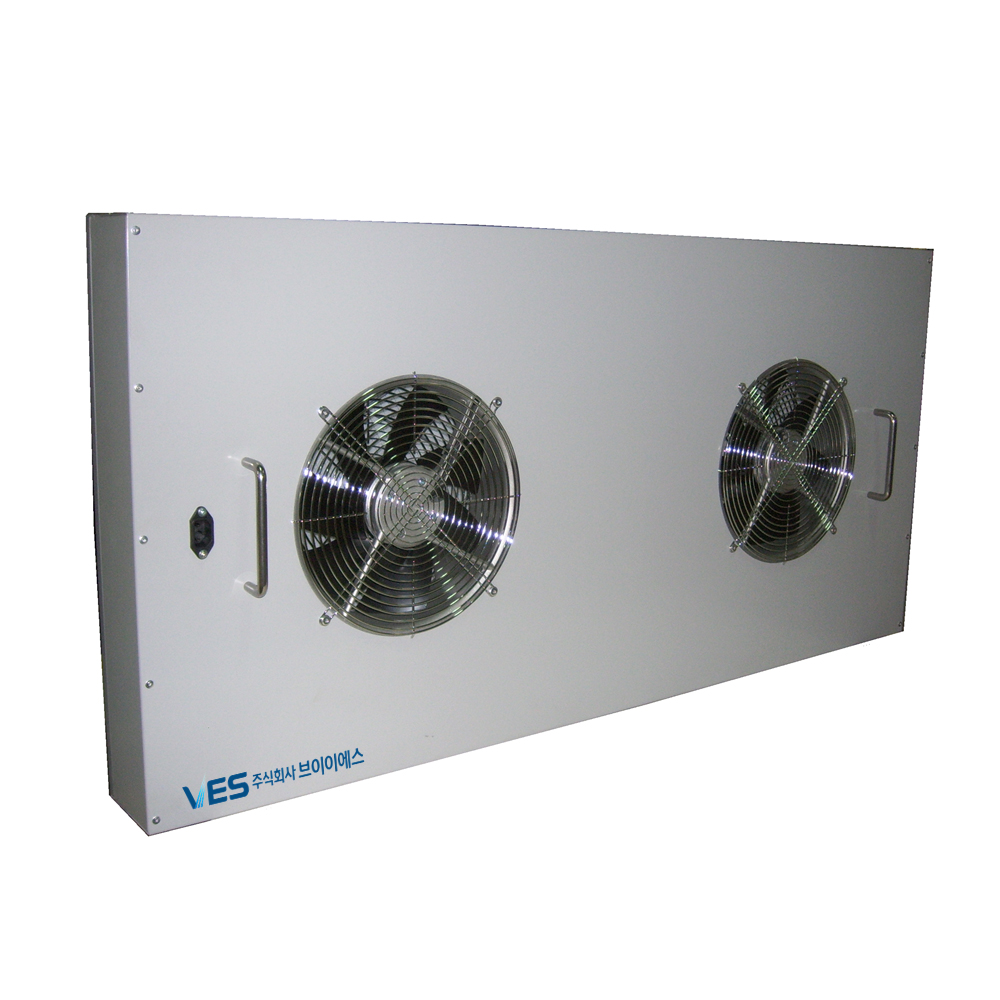

- Photos
-
(0).jpg)
