Clean space access equipment

VUUM Pass Box Pass Box

▶ Multi-function (built-in UV, LAMP, intercom) pass box
Equipment
Pass box with outstanding design and multi-functions
Function
A wider window made of tempered glass
One-touch electronic interlock
Built-in intercome design
A maintenance slot maximizing the ease of maintenance
INQUIRY

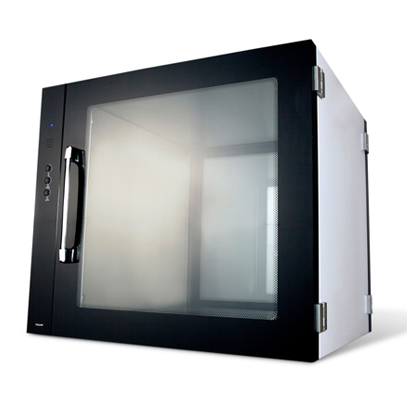

  • VUUM Pass Box

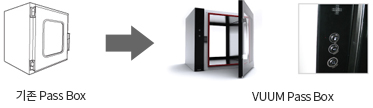

‘Built-in Intercom Pass Box with a Wider View’
The Pass Box can be installed on the wall between Clean Rooms to provide stronger protection against the pollution of indoor air from the movement of people and goods.

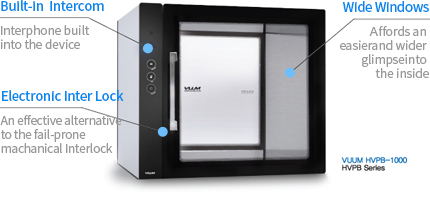

  • A wider window made of tempered glass
  • One-touch electronic interlock
  • Built-in intercome design
  • A maintenance slot maximizing the ease of maintenance
Main Features

  • The built-in Intercom and wider window maximize the user's convenience.

  • Product Specification
Model HVPB-1000
Size(mm) IN 520×520×500
OUT 710×610×610
Exterior SPCC 1.2T, Oven backed melamine coated finish
Interior STS 304 1.2T Polishing finish
Door AL 1.5T Oven backed melamine coated finish, Safety Glass 5T
Interlock Electronic Magnetic Lock 90Lbs, 12VDC, 1A
Power 150W 1PH AC 220V 60Hz
Others Intercom, Lamp
Option UV C Lamp(15W)
  • Supply history
Company By country Participation Type Delivery time Scale
Korea Yuhanchem pass box manufacturing and installation for Yuhanchem Ansan   1 pass box 23.05~23.05
Korea Basetech pass box manufacturing and installation for Basetech Gunsan   1 pass box 23.01~23.03
Mexico Samsung Electronics pass box manufacturing and installation for Samsung Electronics Mexico   1 pass box 22.12~23.01
Korea SamsungEM UP Down pass box manufacturing and installation for SamsungEM Busan   3 up down pass box 22.11~23.01
Korea Samsung SDI pass box manufacturing and installation for Samsung SDI Suwon   1 pass box 22.08~22.09
Korea Samsung Electronics Air shower and pass box manufacturing and supply for Samsung Electronics Suwon   1 air shower, 1 pass box 22.04~22.06
Korea IGS pass box manufacturing and installation for IGS Icheon   1 pass box 22.03~22.06
Korea SamsungEM pass box manufacturing and installation for SamsungEM Busan   1 up down pass box 22.01~22.03
Korea MDS pass box manufacturing and installation for MDS Incheon   1 pass box 21.12~21.12
Korea Kaceco Relocating Air shower and pass box manufacturing and supply for Kaceco Ansan   relocating air shower, 1 pass box 21.10~21.11
Korea KCENC Relocating Air shower and pass box manufacturing and supply for KCENC Pyeongtaek   relocating air shower, 1 pass box 21.07~21.09
Korea TotalENG pass box manufacturing and installation for TotalENG Ulsan   4 pass box 21.07~21.11
Korea Wuhyun pass box manufacturing and installation for SamsungEM   1 pass box 21.05~21.06
Korea Planm pass box manufacturing and installation for Planm Eumseong   20 pass box 21.04~21.12
Korea Yuhanchem Repair pass box for Yuhanchem Hwaseong   pass box repair 21.04~21.04
Korea MDS pass box manufacturing and installation for MDS Gangnamm   2 pass box 21.01~21.02
Korea Planm pass box manufacturing and installation for Planm Eumseong   2 pass box 21.01~21.02
Korea BAenergy pass box manufacturing and installation for BAenergy Hampyeong   1 pass box 20.12~20.12
Korea Kaceco Air shower and pass box manufacturing and supply for Kaceco Hwaeseong   1 air shower, 1 pass box 20.10~20.11
Korea Wuhyun Air shower manufacturing and pass box relocaging work supply for SamsungEM Busan   7 air shower, 3 pass box relocating work 20.04~20.07
Vietnam Getech Air shower and pass box manufacturing and supply for Getech Vietnam   15 air shower, 6 pass box 19.11~20.01
Korea Samsung Electro-mechanics pass box manufacturing and installation for Samsung Electro-mechanics, Busan   2 pass box 19.03~19.03
Philippines Etech pass box manufacturing and installation for Etech Philippines   2 pass box 18.12~19.01
Korea Mobi Engineering Air shower and pass box manufacturing and supply for DB-Hitek   1 air shower, 1 pass box 18.04~18.05
Korea Narae ENC Air shower and pass box manufacturing and supply for SIEMENS Helthineers   2 air shower, 1 pass box 18.03~18.05
Philippines Narae ENC Air shower and pass box manufacturing and supply for GBPLEN Philippines   1 air shower, 1 pass box 18.01~18.02
Vietnam Travis Elevator Lift pass box manufacturing and installation for SEVT   1 lift pass box 17.07~17.09
Vietnam GE Tech Air shower manufacturing and supply for IM Vietnam   6 air shower, 3 pass box 17.03~17.07
Vietnam Samsung Electronics pass box manufacturing and installation for SEVT   2 conveyor type pass box 16.03~16.04
Philippines IM Air shower and pass box manufacturing and installation for IM Philippines   3 air shower, 1 pass box 16.02~16.05
Korea Samsung Electro-mechanics pass box manufacturing and installation for Samsung Electro-mechanics Busan   1 pass box 16.02~16.03
Philippines IM Air shower manufacturing and supply for IM Philippines   6 air shower, 2 pass box 15.12~16.01
Philippines IZU Noblelink Air shower manufacturing and supply for IZU Noblelink Philippines   3 air shower, 1 pass box 15.11~15.12
Qatar QSTEC Air shower manufacturing and supply for QSTEC Qatar   4 air shower, 2 pass box 15.09~17.04
Korea Wisol Air shower manufacturing and supply for Wisol Osan   4 air shower, 2 pass box 15.09~17.04
Korea Samsung Electro-mechanics Hand shower supply to Samsung Display Vietnam   2 air shower, 1 pass box 15.08~15.10
Korea Toray Battery Separator Film Air shower manufacturing and supply for Toray Battery Gumi   8 air shower, 3 pass box 15.07~15.10
Philippines GBPLEN Air shower manufacturing and supply for GBPLEN Philippines   7 air shower, 2 pass box 15.07~15.10
Vietnam Aron Air shower manufacturing and supply for Aron Namuga Vietnam   5 air shower, 2 pass box 15.06~15.08
  • Photos

  • GBPLEN Philippines

  • Optis Philippines

  • Wisol Korea

  • Samsung Vietnam

  • Ba Energy

  • Plan M

  • Plan M
